Wholesale Back Side Lit Channel Letters

Partial back side illumination creates a subtle, sophisticated glow from behind each flush-mounted letterform. The EdgeLuxe LP 11-BS uses embedded LEDs within 30mm cast block acrylic to project light from the back edges.

German-engineered precision. IP67 sealed. Wholesale direct to sign shops across the USA and Canada.

Request Wholesale Pricing
Back side lit channel letters — flush-mount halo glow, night shot — daytime

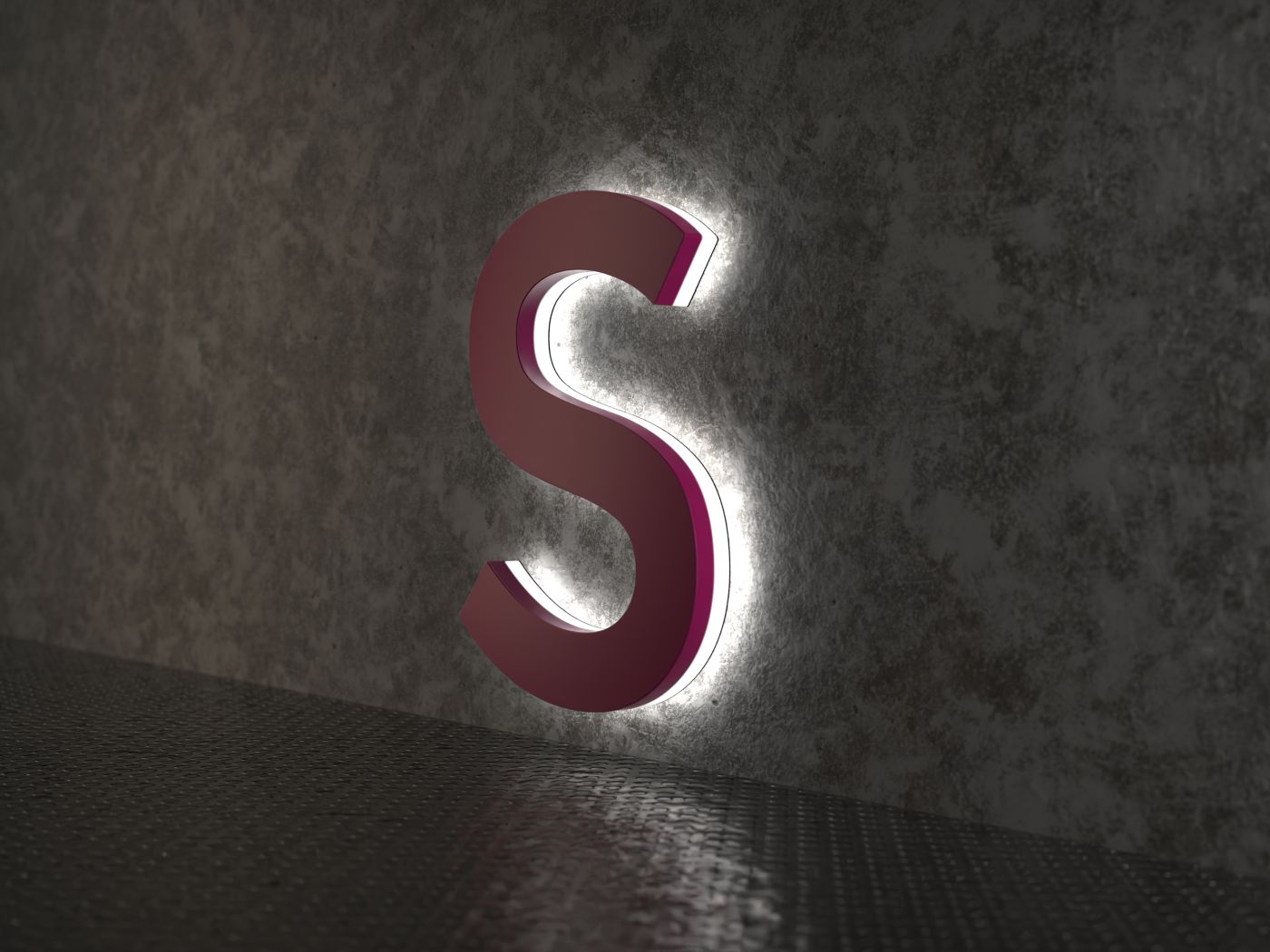

Back side lit channel letters — flush-mount halo glow, night shot — illuminated at night

Trade Specifications & Benefits

Every back side lit channel letter set is manufactured with German-engineered precision and IP67 sealed construction. Wholesale direct to your shop.

Subtle Back Side Glow

Partial back side illumination creates an elegant, understated halo effect when flush-mounted against any surface.

Flush-Mount Design

Engineered for direct surface mounting with no standoff spacers required. Clean, minimal installation profile.

IP67 Sealed

Epoxy-sealed block acrylic construction rated IP67. Fully waterproof and dust-proof for any outdoor installation.

Full Color Range

Available with any Pantone-matched color. Pigmented translucent acrylics for colored back-glow effects.

Precision Engineering

German-engineered to minimum 12mm stroke width with uniform light distribution across every letterform.

Zero Maintenance

Epoxy-sealed IP67 construction means no serviceable parts — letters are built to last without any maintenance.

Trade Specifications

Built with IP67 epoxy-sealed block acrylic for zero-maintenance durability. Every specification reflects our commitment to quality and longevity. Available exclusively at wholesale trade pricing.

[PLACEHOLDER: Back side lit channel letter — cross-section detail showing LED placement and flush-mount design]
EdgeLuxe LP 11-BS
Product LineEdgeLuxe LP 11-BS
TypeBlock Acrylic Partial Back Side-lit
Material30 mm (1.2") cast block acrylic
IlluminationEmbedded LEDs for uniform partial back side-lit, flush-mount
Depth30 mm (1.2")
Minimum Stroke Width12 mm (0.47")
Minimum Height50 mm (2")
CustomizationAny PMS color, vinyls, pigmented translucent acrylics
SealingEpoxy-sealed for IP67 waterproofing
MaintenanceIP67 water- and dust-proof — no maintenance
CertificationsUL Listed (UL 48)
Lead Time3 weeks door to door

Common Applications

Back side lit channel letters deliver a refined, understated aesthetic ideal for premium environments where subtlety and sophistication are paramount. Wholesale direct to sign shops for all project types.

  • Luxury retail storefronts
  • Boutique hotels and resorts
  • High-end restaurant facades
  • Corporate headquarters
  • Spa and wellness centers
  • Premium office lobbies
  • Upscale residential communities
  • Art galleries and cultural venues
Back side lit channel letters — luxury installation, daytime

Back Side Lit Projects

[PLACEHOLDER: Back side lit letters — luxury retail storefront]
[PLACEHOLDER: Back side lit letters — boutique hotel entrance]
[PLACEHOLDER: Back side lit letters — high-end restaurant facade]
[PLACEHOLDER: Back side lit letters — corporate headquarters lobby]
[PLACEHOLDER: Back side lit letters — spa and wellness center]
[PLACEHOLDER: Back side lit letters — art gallery signage]
Trade Accounts Only

Get Your Product Started.

Request wholesale pricing for your next project. Detailed trade quotes within 24 hours. Delivered in 3 weeks door to door.
